Mobility Resort Motegi iRacing Track Guide
Overview
Primary layout (iRacing): Mobility Resort Motegi – International (also listed as Grand Prix in some series) — the full 4.801 km clockwise road course with 14 turns and roughly 30 m of elevation change. Built inside a bowl carved from the Tochigi hills, the lap mixes a heavy-braking Turn 1, a technical infield section shared with the West layout, a flat-out 130R, flowing S-Curves and V-Curve, a slow countryside Hairpin, a long return straight, and the Victory Corner exit that sets speed onto the front straight. The venue was formerly known as Twin Ring Motegi; iRacing and real-world Super GT / Super Formula use this International configuration as the primary road course. Official sessions range from GT3 and GT4 to prototypes and open-wheel; traction out of the Hairpin and Victory Corner defines race pace as much as outright top speed.

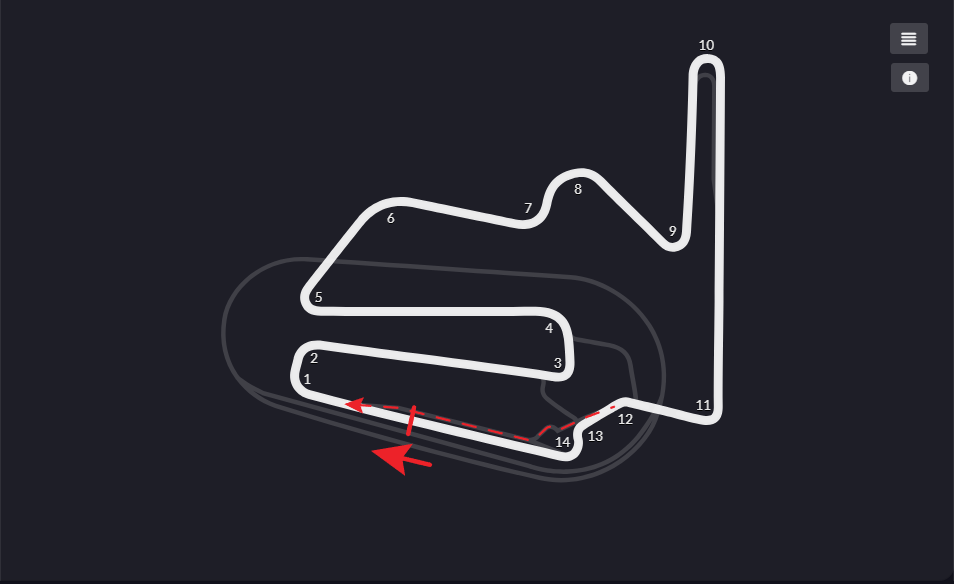

Track map
Why This Track Is Difficult
Turn 1 closing speeds: The front straight feeds a hard right—late moves and defensive zigzags stack incidents on lap one. Infield rhythm (Turns 2–5): Medium-speed direction changes inside the oval footprint punish sloppy steering and early throttle; a small mistake costs the run to 130R. 130R commitment: A fast left that rewards flat throttle in GT3 and prototypes but punishes any mid-corner lift with lost time through the S-Curves. Hairpin traction: The slow left in the countryside section is the lap’s traction checkpoint—wheelspin here destroys the long return straight. Victory Corner exit: The final right through the tunnel approach sets top speed for the full front straight; compromise here and you are defenceless for the next lap. Track limits: iRacing’s limits bite on Hairpin and Victory exits; a deleted lap or 1x in a race hurts more than one lost position. Multiclass traffic: Prototypes arrive at Turn 1 and the Hairpin with very different braking markers—predictable lines matter more than raw pace.
Best Car Classes for This Track
GT3 / GTE-style: Bread-and-butter Motegi car. Balance rear stability for 130R and the infield with enough traction for Hairpin and Victory exits. Weakness: prototype closing speeds if you defend too late on the front straight.
LMP2 / prototypes: Top speed and traction out of Hairpin and Victory dominate. Must brake earlier behind GTs at Turn 1 and the Hairpin; strength is safe passes when slower cars leave room before the braking boards.
GT4 / slower GT: Often need a visible lift through 130R and more conservative infield entries. Focus on rhythm and legal exits—chasing GT3 kerb lines without the grip causes spins and limit violations.
MX-5 / lower licence content: Turn 1 and the Hairpin remain the main chess—patience beats heroics. Short-shift Hairpin and Victory exits if the rear steps on worn tyres.
Sector and Corner Guide
Boards and gears are typical GT3 references—validate every marker in your car and with iRacing’s telemetry. Add invalidation risk notes where limits bite in official racing.
Turn 1
Type: Heavy-braking right at the end of the front straight. Gear: 2nd–3rd. Passing: Primary overtaking zone—lap 1, restarts, pit-out merges.
Braking: Around the 100 m board for many GT3s—adjust per car and fuel load. Straight-line brake, then trail to rotate.
Turn-in / apex: Late apex; clip the inside kerb without bouncing wide. The short burst into the infield starts immediately.
Exit: Use legal track width; a wide exit compromises line into Turn 2 and risks track limits on the outside.
Invalidation risk: Running wide on exit onto the apron or grass—common in quali when chasing a tow.
Common mistake: Late braking from slipstream misjudgement; shallow apex that kills speed through Turns 2–3.
Turns 2–3 – Infield Entry
Type: Linked right-left through the infield. Gear: 3rd–4th. Passing: Possible with overlap from Turn 1 exit—high risk.
Technique: Smooth rhythm—Turn 2 sets minimum speed for Turn 3. Avoid pinching the second apex after a shallow first turn-in.
Line: Use kerbs sensibly; the run toward Turns 4–5 rewards a wide, stable exit from Turn 3.
Invalidation risk: Moderate on aggressive inside cuts or wide exits at Turn 3.
Common mistake: Over-slowing Turn 2 and arriving at Turn 4 off-line; sawing the wheel when the rear steps on cold tyres.
Turns 4–5 – Infield Exit
Type: Medium-speed right-left linking to 130R approach. Gear: 3rd–4th.
Technique: Flow section—minimise steering corrections. Exit of Turn 5 defines entry speed and line for 130R.
Line: Use full track width on entry to Turn 4; clip inside kerbs without exceeding limits on exit toward 130R.
Invalidation risk: Low if you stay on asphalt—avoid running wide on Turn 5 exit.
Common mistake: Overdriving after a poor Turn 1; rear snap when adding throttle too early on cold rubber.
Turn 6 – 130R
Type: Fast, slightly downhill left sweeper. Gear: 4th–5th (GT3). Passing: Rare—too fast and blind for side-by-side.
Technique: Commit: lifting mid-corner hurts the whole approach to the S-Curves. Build up to flat; slower cars may need a small breathe on entry.
Line: Use full track width on entry; clip inside kerb without exceeding limits on exit.
Invalidation risk: Running wide on exit—easy invalid in quali when chasing a tenth.
Common mistake: Panic lift, early throttle on the wrong line, or defending here when you should concede before the S-Curves.
Turn 7 – S-Curves (S字カーブ)
Type: Medium-speed left-right esses after 130R. Gear: 3rd–4th. Passing: Low odds—high incident risk.
Technique: One smooth rhythm—let the car settle between direction changes. Minimise steering angle; the V-Curve braking zone arrives quickly.
Line: Clip kerbs cleanly; avoid bouncing the platform into the V-Curve entry.
Invalidation risk: Moderate—cuts on the inside of either phase or wide exits onto kerb runoff.
Common mistake: Too much kerb in the first phase; fighting the wheel instead of holding a steady throttle trace.
Turn 8 – V-Curve (V字カーブ)
Type: Tight right before the countryside section. Gear: 2nd–3rd. Passing: Rare unless you have a big momentum advantage from 130R.
Braking: Straight-line priority; finish downshifts before heavy lateral load.
Line: Late apex; pick up throttle as the car straightens toward the Hairpin braking zone.
Invalidation risk: High on aggressive cuts—stay legal; the Hairpin is the real time gain, not a hero cut here.
Common mistake: Carrying too much entry speed and washing wide; locking fronts under combined braking.
Turn 9 – Hairpin (ヘアピン)
Type: Slow left hairpin in the countryside section. Gear: 2nd. Passing: Secondary zone if you have momentum from Turn 1 or S-Curves.
Braking: Near the 50–75 m board for GT3; elevation and lateral G from the approach shorten the visual gap—practice consistency.
Apex / throttle: Late apex; pick up throttle as the car straightens toward the return straight. Traction is everything—short-shift if the rear spins.
Invalidation risk: Wide exit onto kerb/runoff—watch the white line under throttle.
Common mistake: Carrying too much entry speed and washing wide; aggressive throttle that overheats rears for the long straight.
Turn 10 – 90° Corner
Type: Medium-speed right on the return straight. Gear: 3rd–4th.
Technique: Straight-line brake, trail to rotate, then smooth throttle onto the long return section toward the tunnel.
Line: Use kerb on entry if stable; exit defines approach speed for the final sector.
Invalidation risk: Moderate on wide exit—do not sacrifice the next corners for one aggressive cut.
Common mistake: Overdriving after a poor Hairpin exit; rear snap when adding throttle too early.
Turns 11–13 – Tunnel Approach
Type: Linked medium-speed corners leading under the oval back straight. Gear: 3rd–5th (class-dependent). Passing: Low odds—focus on clean exits.
Technique: Flow section—minimise corrections. Set the car neutral before Victory Corner; the tunnel section rewards calm hands.
Line: Use kerbs sensibly without launching the car; vision is limited—know the line from practice, not improvisation in traffic.
Invalidation risk: Moderate on aggressive kerb use at the tunnel mouth.
Common mistake: Lifting unexpectedly in traffic; pinching the line when a faster car is already alongside toward Victory Corner.
Turn 14 – Victory Corner (ビクトリーコーナー)
Type: Long-radius final right onto the front straight. Gear: 3rd–5th (class-dependent). Passing: Possible with momentum—otherwise defend early on the straight.
Braking / throttle: Trail-heavy entry; pick up throttle as the car rotates—exit defines tow and top speed for the full front straight.
Line: Use full width on exit without exceeding limits; any slide here costs km/h down the straight.
Invalidation risk: Running wide on exit—frequent quali invalid.
Common mistake: Early throttle that spins the rear; squeezing a faster car that is already alongside onto the straight.
Pit entry and exit
Pit entry: On the International layout, pit road peels off before Victory Corner on the infield side—signal intent early enough that you do not cut across cars still committed to the final sector.
Pit exit: Merges toward the front straight—traffic may be flat through Victory on a quali lap. Blend predictably; check mirrors before contesting Turn 1.
Recommended gears (GT3 reference)
| Section | Mazda | GT3 | LMP3 | LMP2 |
|---|---|---|---|---|
| Turn 1 | 2nd–3rd | 2nd–3rd | 2nd–3rd | 2nd–3rd |
| Turns 2–3 – Infield Entry | 3rd–4th | 3rd–4th | 3rd–4th | 3rd–4th |
| Turns 4–5 – Infield Exit | 3rd–4th | 3rd–4th | 3rd–4th | 3rd–4th |
| Turn 6 – 130R | 4th–5th | 4th–5th | 4th–5th | 4th–5th |
| Turn 7 – S-Curves | 3rd–4th | 3rd–4th | 3rd–4th | 3rd–4th |
| Turn 8 – V-Curve | 2nd–3rd | 2nd–3rd | 2nd–3rd | 2nd–3rd |
| Turn 9 – Hairpin | 2nd | 2nd | 2nd | 2nd |
| Turn 10 – 90° Corner | 3rd–4th | 3rd–4th | 3rd–4th | 3rd–4th |
| Turns 11–13 – Tunnel Approach | 3rd–5th | 3rd–5th | 3rd–5th | 3rd–5th |
| Turn 14 – Victory Corner | 3rd–5th | 3rd–5th | 3rd–5th | 3rd–5th |
Alternative Layouts
East: iRacing lists Mobility Resort Motegi – East (~3.400 km, 11 turns). The racing lap rejoins the International circuit after the V-Curve, cutting the countryside Hairpin, 90° Corner, and long return straight. Passing zones shift: Turn 1 and the infield remain primary, but the East rejoin becomes a decisive point—mistakes carrying too much speed into the merge punish the whole next sector. Lap-one risk is higher when the field compresses at the rejoin after 130R and the S-Curves.
West: Mobility Resort Motegi – West (~1.384 km, 6 turns) is the short infield loop inside the oval footprint. Useful for rookies and licence content; Turn 1 through the infield read the same as the opening sector of the International layout, but there is no 130R, countryside section, or Victory Corner. Track-limit enforcement on infield exits is unchanged—do not assume the shorter lap is “easy”; rhythm and legal kerb use still define pace.
Oval: The 1.549 mi egg-shaped superspeedway is a separate iRacing configuration (counter-clockwise, unlike the clockwise road course). Drafting, line choice in Turns 3–4, and pack racecraft dominate—this guide does not cover oval technique; select the International layout for the full road-course baseline described above.
Common Mistakes to Avoid
Beginner: Maximum brake too late at Turn 1; lifting in the middle of 130R; using every kerb at 100% on lap one; ignoring mirrors on the front straight.
Intermediate: Chasing quali lines in race traffic; adding steering in 130R when the rear steps instead of holding throttle steady; moving under braking at Turn 1; fighting prototypes into the Hairpin instead of conceding once.
Fixes: Build repeatable brake markers before chasing tenths. Practice invalidation-safe lines for series with strict limits. Do full-stint runs—tyre drop changes Hairpin and Victory more than the front straight.
Overtaking and Defending
Best zones: Turn 1 (outbrake with straight-line overlap), Hairpin (if you’re alongside after the S-Curves), Victory Corner exit if you are fully alongside onto the straight.
High-risk moves: Up the inside at Turn 1 on lap 1 three-wide; alongside through 130R or the S-Curves; late prototypes into the Hairpin when GTs brake earlier; squeezing at Victory when the attack is already complete.
Defending: Break the tow before the front straight braking zone if rules allow; one move principles—choose inside or outside early for Turn 1. At the Hairpin, defend the line that preserves exit onto the return straight; avoid reactive second moves under braking.
Racecraft and Incident Avoidance
Crash magnets: Turn 1 lap 1 pileups; S-Curves stack when three-wide; Hairpin rear-ends when the lead car brakes early; Victory Corner when someone lifts unexpectedly onto the straight.
Lap 1: Survive Turn 1—brake a touch early, leave a gap, don’t pin to the apex if you’re mid-pack. Let the field stretch before attacking through the infield.
Survival strategy: In official races, finishing beats hero points—give one position to avoid a 1x that becomes a spin. After incidents, reset rhythm before pushing—cold tyres + 130R = tow truck.
Traffic Management Tips
Faster class: Plan passes on the front straight; use relative and radar. Brake earlier behind GTs at Turn 1 and the Hairpin; don’t fill their mirror in the braking zone—go early or wait for the next straight.
Slower class: Signal with line choice early on the front straight; don’t park in the middle of the braking zone. At the S-Curves and Hairpin, hold a predictable line—erratic defending causes prototypes to guess wrong.
When to back out: If you’re not fully alongside before turn-in at Turn 1, the Hairpin, or Victory Corner, lift and slot in. Half moves here generate protests and DNFs.
Setup Advice
Aero: Moderate downforce helps 130R and the infield without costing too much on the long straights—find the lowest wing that still rotates in the Hairpin without excessive mid-corner understeer in the S-Curves.
Brake bias: Enough forward bite for Turn 1 and the Hairpin; if rears lock into Victory Corner, fix release technique before moving bias dramatically rearward. Re-check after fuel burn.
Traction / diff: Hairpin and Victory exits highlight diff settings—test on 15–20 lap runs, not three-lap quali simulations. Soften preload slightly if the rear snaps on cold tyres.
Kerbs: Stiffer cars can use more infield and Hairpin kerb; if the car hops, soften slow-speed damping or raise ride height slightly—repeatability beats one hero lap that breaks traction two laps later.
Tyre Management
Wear hotspots: Front-left and rears work through long loaded lefts (130R, S-Curves) and lateral loads in the infield and Hairpin. Rights also see load through the V-Curve and Victory Corner.
Overheating: Aggressive Turn 1 and Hairpin entries spike front temps; rear overheating follows traction abuse out of the Hairpin and Victory if you slide.
Consistency: Smooth steering beats stabbing—especially 130R through the S-Curves. Short-shift on the straight only if your series strategy demands it; don’t lift in 130R purely to “save” tyres.
Fuel: The long straights increase per-lap use—plan stints in the garage. Save fuel with upshifts where safe; avoid sacrificing Victory exit for tiny fuel gains.
Qualifying vs Race Pace
Qualifying: One clean lap with max attack in 130R and Victory exit; kiss kerbs without crossing limits. Traffic plan: out lap space for the front straight and 130R so you’re not on cold rubber in dirty air.
Race: Trade last tenth in the Hairpin for legal exits and tyre life. Defensive lines may widen your arc into the S-Curves—accept it. After incidents or pit cycles, spend a lap resetting inputs before leaning on 130R again.
Risk vs consistency: Motegi rewards repeated 99% laps more than alternating purples with spins. In iRacing officials, incidents hurt SR and iRating more than one lost position at Turn 1.
Final Tips
- Biggest time gain: 130R commitment and Victory Corner exit—free speed down the front straight and through the next sector.
- Biggest race saver: Legal, early decisions at Turn 1 and the Hairpin—avoid 1x and trips to the barrier.
- Hardest section: 130R through S-Curves under pressure or cold tyres, and the Hairpin when the rear is soft late in a stint.
- Best overtaking zone: Turn 1 for fair fights; Hairpin for decisive braking contests when overlap is genuine.
