Circuit of the Americas iRacing Track Guide
Overview
Primary layout (iRacing): Circuit of the Americas – Grand Prix — the full 5.515 km (3.427 mi) anti-clockwise road course with 20 corners. The lap opens with a steep, traction-limited climb into Turn 1, drops through fast esses, threads a multi-apex stadium section, uses a long back straight into a heavy brake at Turn 12, then finishes with a technical middle sector and the Arena triple before the pit straight. Official sessions span GT, prototypes, open-wheel, and tin-tops; closing speeds and track-limit calls show up everywhere from the esses to the final complex.

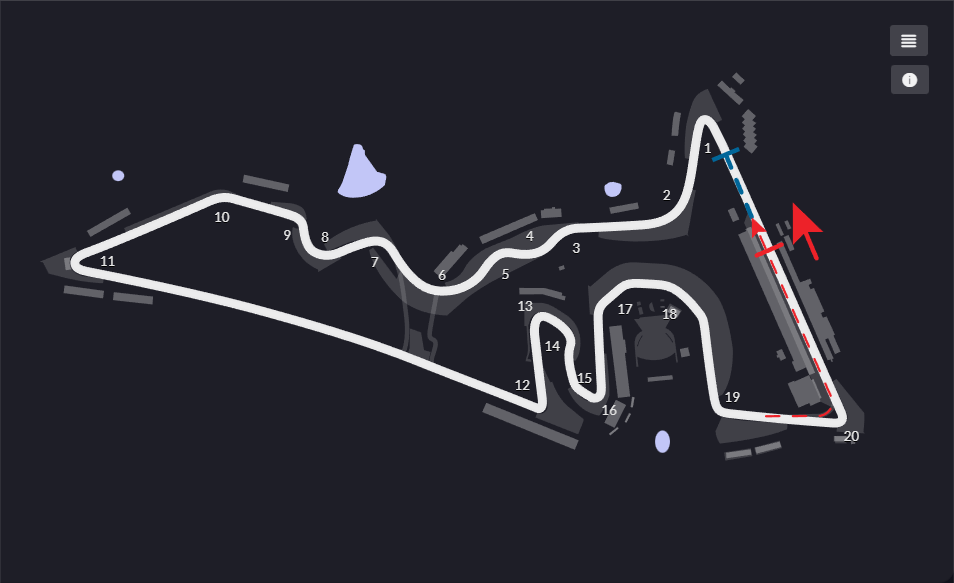

Track map
Why This Track Is Difficult
Turn 1: Blind-ish approach, steep upslope, and rear traction on exit—small errors cost the whole run through the esses. Rhythm sections: Turns 2–6 and the stadium (7–11) punish sawing inputs; one early throttle or kerb bounce stacks time for several corners. Turn 12: Classic “straight into a wall of braking”—multiclass misjudgement causes massive closing-speed hits. Arena (16–18) and Turns 19–20: Easy to overdrive in qualifying; iRacing limits invalidate laps when you greed the last apex or run wide onto the start straight. Wind and elevation: Heading changes on the climb and descent subtly move braking references—repeatability beats hero braking.
Best Car Classes for This Track
GT3 / GTE-style: Strong all-rounder. Enough mechanical grip for the stadium, enough aero to carry the esses, but still traction-limited up the hill and out of the hairpin. Weakness: prototype closing speed into Turn 12 if you defend too late.
LMP2 / prototypes: Top speed and traction dominate the back straight and Turn 12 attack. Must plan passes before braking zones; the stadium is narrow for side-by-side completion.
GT4 / slower GT: Prioritise clean esses and patient Arena exits—chasing GT3 minimum speeds in the stadium usually costs tyres and track limits.
MX-5 / lower licence content: Turn 1 needs discipline; short-shift if the rear is lighting. Esses reward smooth minimum-speed driving over late braking.
Sector and Corner Guide
Boards and gears are typical GT3 references—validate every marker in your car and with iRacing’s telemetry. Add invalidation risk notes where limits bite in official racing.
Turn 1 (uphill hairpin)
Type: Slow-mid left hairpin on a steep climb. Gear: 2nd (GT3) / 2nd (MX-5). Passing: Lap 1, restarts—high risk.
Braking: Straight-line priority; many cars use the 100 m board as a first reference, then adjust for tyre and fuel. Finish downshifts before you add steering.
Turn-in / apex: Late enough to open the exit; avoid stacking understeer that forces you to add power while still turning.
Exit: Feed throttle as the car straightens—wheelspin here ruins speed into Turns 2–3.
Invalidation risk: Running wide on exit onto the outer apron—keep inside white-line discipline until the lap is safe.
Common mistake: Shallow apex then aggressive throttle; also defending so hard you kill your own esses entry.
Turns 2–6 (esses)
Type: Linked right-left-right-left-right descent. Gear: 4th–5th (GT3 / LMP2) with small lifts as needed. Passing: Rare—only if the lead car makes a big mistake.
Technique: Eyes up, one input at a time; let the car settle between direction changes. Use kerbs to shorten slightly, not to launch.
Throttle: Roll speed—any stab mid-sequence unbalances the car for the stadium entry.
Invalidation risk: Running wide on kerb exits where limits are strict; cuts on the inside of rapid direction changes.
Common mistake: Braking too late for the first right and then fighting the wheel through the whole set.
Turns 7–11 (stadium section)
Type: Medium-slow linked corners with stadium walls visually “close.” Gear: mostly 2nd–4th depending on car. Passing: Possible at the hairpin (T10) if you’re genuinely alongside early.
Priority: Exit onto the short straight toward the back straight matters more than winning a single apex inside the complex.
Turn 10 hairpin: Heavy trail brake, patient rotation, then protect rear traction—this corner sets top speed for the kilometre straight.
Invalidation risk: Aggressive exits onto kerbs that spit you wide; avoid “quali cuts” on alternate apexes.
Common mistake: Over-slowing the first stadium corners then compensating with too much throttle on exit.
Turn 11 onto the back straight
Type: Acceleration left onto long straight. Gear: builds to top (5th–7th class-dependent).
Technique: Straighten the wheel early; check relative before you fully commit—prototypes may be arriving.
Turn 12 (end of back straight)
Type: Heavy braking, slow-mid left. Gear: 2nd–3rd (GT3). Passing: Primary zone alongside multiclass fights.
Braking: Often near the 100 m board for GT3—validate per car and wind. Brake straight; avoid turning in while the fronts are still loaded.
Apex / exit: Clip inside sensibly, then use legal width to open Turns 13–15 without pinching the next line.
Invalidation risk: Medium—wide exits onto painted/runoff areas stack incidents and limits.
Common mistake: Late brake when following a prototype line; also turning in early and killing mid-corner speed through 13–15.
Turns 13–15 (middle sector link)
Type: Medium-speed direction changes. Gear: 3rd–5th (class-dependent).
Technique: Treat it as one rhythm—minimise corrections so you arrive neutral for the Arena entry.
Invalidation risk: Running wide on exits that feed blind entries for following cars.
Turns 16–18 (Arena triple)
Type: Right-left-right complex before the pit straight. Gear: 2nd–3rd (GT3).
Braking: Small brake or lift for entry; priority is a stable platform through all three apexes.
Line: Don’t “win” the first apex if it destroys the third—exit onto the straight defines race results.
Invalidation risk: High in quali—running wide on the final right onto the start/finish strip is a common deleted lap.
Common mistake: Adding throttle too early on the middle left; rear instability ruins the final right.
Turns 19–20 (final left-right onto pit straight)
Type: Slow left into short right kink onto the straight. Gear: 2nd–3rd.
Technique: Patient rotation in 19; use 20 to straighten for full throttle without exceeding limits on exit.
Passing: Possible but risky—closing speeds onto the straight are high if the pass isn’t complete.
Invalidation risk: Track limits on exit of 20—keep four wheels legal when the lap timer matters.
Pit entry and exit
Pit entry: On the left as you leave Turn 20 onto the start/finish straight—signal early and stay clear of cars still committed to a quali line through Turns 19–20.
Pit exit: Feeds the pit-out lane that merges toward Turn 1—expect cold tyres on the climb and traffic on the racing line. Merge predictably; don’t squeeze the field uphill.
Recommended gears (GT3 reference)
| Section | Mazda | GT3 | LMP3 | LMP2 |
|---|---|---|---|---|
| Turn 1 | 2nd | 2nd | 2nd | 2nd |
| Esses (T2–6) | 4th–5th | 4th–5th | 5th–6th | 5th–6th |
| Stadium (T7–11) | 2nd–4th | 2nd–4th | 2nd–4th | 2nd–4th |
| Turn 12 | 2nd–3rd | 2nd–3rd | 2nd–3rd | 2nd–3rd |
| Turns 13–15 | 3rd–5th | 3rd–5th | 4th–6th | 4th–6th |
| Arena (T16–18) | 2nd–3rd | 2nd–3rd | 2nd–3rd | 2nd–3rd |
| Turns 19–20 | 2nd–3rd | 2nd–3rd | 2nd–3rd | 2nd–3rd |
Alternative Layouts
National circuit: iRacing also lists the shorter Circuit of the Americas – National configuration (~4.184 km). It skips the full stadium sequence used on the Grand Prix lap and rejoins toward the long straight, which changes braking energies into Turn 12 and compresses multiclass timing—you spend less time in slow linked corners and more in pure straight-line deltas. Passing windows move: the hairpin and Turn 12 remain primary, but the long “middle rhythm” of the GP stadium is gone—do not assume GP-sector references transfer 1:1.
Pit and session labels: Always confirm the exact configuration in the session UI before practice—fuel per lap, tyre temps, and traffic patterns differ between GP and National even on the same account content.
Common Mistakes to Avoid
Beginner: Maximum throttle too early on the Turn 1 exit; braking too late for Turn 12 the first time you see a draft; kerb-hopping the Arena in race traffic.
Intermediate: Over-defending the esses and killing minimum speed; fighting prototypes into Turn 12 instead of conceding once; chasing quali kerb use on lap one with cold tyres.
Fixes: Build two brake references (quali vs race traffic). Practice invalidation-safe Arena exits before pushing for purples. Do full-stint runs—rear traction on the climb and out of the hairpin changes with tyre age.
Overtaking and Defending
Best zones: Turn 12 (straight-line overlap and clean outbrake), Turn 10 hairpin (if you’re alongside early), and sometimes Turn 1 on lap one when the field stacks—still high risk.
High-risk moves: Dives into the esses; late inside moves into the stadium when the track narrows; squeezing on exit of 19–20 onto the straight.
Defending: One-move discipline—choose inside or outside for Turn 12 early. On the back straight, consider where you want to be before braking starts; reactive weaving burns tyres and invites contact.
Racecraft and Incident Avoidance
Crash magnets: Turn 1 lap 1; Turn 12 prototype-on-GT closing speeds; Arena stack when three-wide ambition meets physics.
Lap 1: Brake a touch early for Turn 1, leave a gap, and survive the esses—let the field stretch before you spend iRating on a hero pass into the stadium.
Survival strategy: In officials, a clean minus-one decision at Turn 12 beats a net positive iRating weekend lost to a tow truck. Reset hands and references after any big slide in the esses—errors repeat until you breathe.
Traffic Management Tips
Faster class: Plan the pass before Turn 12 or out of the hairpin onto the straight—don’t fill mirrors mid-Arena. If you’re not fully alongside before apex, back out and use the straight.
Slower class: Signal early on straights; hold predictable lines through the esses—small wiggles look like invites but create sideswipes.
When to back out: If you’re not alongside before turn-in at Turn 12 or the hairpin, slot in. Half moves here generate protests and DNFs.
Setup Advice
Aero: Enough rear stability for the esses and Arena without adding so much drag that the back straight becomes a sitting duck in multiclass.
Brake bias: Slightly forward can help Turn 12 stability under heavy fuel; rearward may help rotation in the stadium—re-check after burn-off.
Traction / diff: Turn 1 and the hairpin reward progressive diff and sympathetic TC—if the rear snaps on stadium exits, soften preload or rear spring rate rather than only cranking TC.
Kerbs: Stiffer cars can use esses kerbs; if the car hops, soften slow damping or raise ride height slightly—bottoming on the Turn 1 climb is expensive.
Qualifying vs race: Quali can run a touch more aggressive rake if it stabilises Turn 12 entry; race setups should prioritise tyre life through 13–18 and predictable traction on long runs.
Tyre Management
Wear hotspots: Fronts work through Turn 12 and the Arena; rears suffer Turn 1, the hairpin exit, and traction exits onto the long straight.
Overheating: Sliding in the esses and sawing in the stadium heat fronts quickly; rear overheating follows aggressive hairpin exits and snap corrections in the Arena.
Consistency: Smooth steering in 13–18 saves more time than one late brake at Turn 12. Short-shift only if your stint plan demands it—don’t kill the straight for tiny tyre gains.
Fuel: Long full-throttle sections mean healthy per-lap consumption—sanity-check stint lengths in the garage, especially in endurance pit cycles.
Wet Weather Driving Tips
Treat Turn 1 as ice on the inside—gentle brake release and later, straighter throttle. Esses need smaller slip angles; reduce kerb appetite everywhere. Turn 12 needs earlier braking and straighter trail—ABS won’t fix poor overlap judgement with traffic. In the Arena, prioritise rotation over entry speed; painted areas are extra slick. Extend gaps before pushing—spray hides brake boards and relative closing speeds.
Qualifying vs Race Pace
Qualifying: One clean lap with commitment in the esses and a tidy Arena exit—limits are ruthless on the last kerb. Give yourself space on the out lap so Turn 1 isn’t on stone-cold rubber with traffic.
Race: Trade the last tenth in the stadium for exits that protect tyres and sidepods. Defensive lines through 16–18 widen your arc—accept it and get a better Turn 12 next lap.
Risk vs consistency: COTA pays drivers who repeat clean GP laps more than alternating purple sectors with 1x off-tracks. In iRacing officials, incidents hurt SR and iRating more than one lost position into Turn 12.
Final Tips
- Biggest time gain: Turn 1 exit and a settled line through Turns 2–6—free speed for the whole middle sector.
- Biggest race saver: Clean, early decisions at Turn 12 and the Arena—avoid track limits and multiclass punts.
- Hardest section: Stadium (7–11) under traffic and tyre drop, plus 16–18 when you’re chasing a tenth.
- Best overtaking zone: Turn 12 for fair fights; Turn 10 when overlap is honest and early.
