Barber Motorsports Park iRacing Track Guide
Barber Motorsports Park is 2.38 miles of smooth, technical, flowing circuit with roughly 80 feet of elevation change and the kind of corner numbering that runs deep into the lap (through Turn 17 in common references). The track feels longer than its length—blind apexes and constant direction changes reward precision. One of the smoothest surfaces in North American racing. Used for IndyCar, IMSA, and club racing on iRacing.

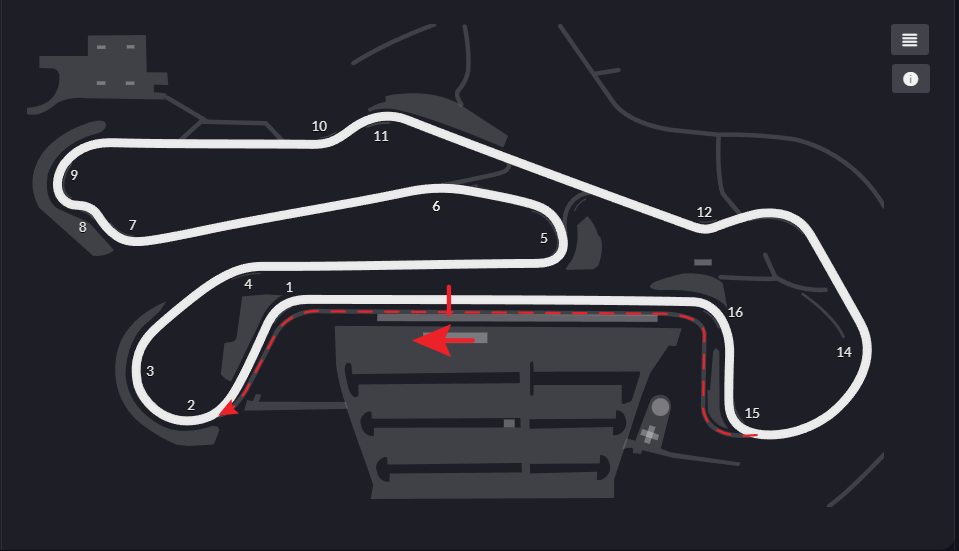

Track map
Overview
Primary layout (iRacing): Barber Motorsports Park – Full Course (2.38 miles / 3.83 km), the same sinuous Grand Prix loop used in the real world for INDYCAR and sports cars. The Alan Wilson design is wide (about 45 feet of racing surface), rolling, and relentlessly linked—almost every corner sets up the next. Official iRacing marketing describes the lap as a 16-turn ribbon; in-car sector labels and corner callouts on broadcasts often count further (e.g. into the high-numbered turns), so use this guide’s turn labels as driving references, not as a debate about how many “corners” fit on a map.
Key sectors for lap time: the fast Turn 1 (downhill entry, uphill exit) feeding the long Turn 2 right-hander; the slow Turn 3; the Turns 4–5 Museum chicane; the Turn 6–8 sequence onto the back straight; the rolling Turns 9–13 mid-lap; and the stop-start Turns 14–17 complex onto the start-finish. Passing is real but never “free”: you earn drafts on the short straights, then spend the grip you saved in the technical bits.
Why This Track Is Difficult
Barber punishes impatience. The surface is smooth, so the limit feels approachable—until you ask for one percent too much mid-corner and scrub the exit that feeds the next straight. Blind and half-blind apexes hide the true clipping point; without fixed brake markers you will oscillate between under-driving and over-driving the same corner every lap. The lap is also a tyre-temperature exercise: long loaded turns (especially the Turn 2 carousel) keep lateral forces high, so small steering corrections show up as time or as overheated fronts. In iRacing, track limits at chicane exits and the final complex decide races as often as outright pace.
Best Car Classes for This Track
GT3 / GTE: Heavy braking into Turn 3, the Museum chicane, and the final complex rewards stable trail braking; traction out of slow corners defines race pace. GT4 / TCR: Less power makes the mid-lap rhythm and minimum-speed corners even more important—defend early because straight-line “run away” is limited. Prototype / LMP-style: Downforce hides some sins in fast turns but multiclass patience is everything—Barber’s width helps until someone brakes 20 metres earlier than you expect. Formula / open-wheel: Commitment in fast transitions is the game; small line errors become big gaps. MX-5 / slower production: Draft and momentum matter; the race is often won in Turn 1 lap one and in who keeps tyres under them for twenty minutes.
Sector and Corner Guide
References below are for the Full Course. Re-use the same brake markers once you find them; Barber rewards repeatability more than heroics. Watch off-track counters: iRacing is strict on chicane cuts and wide exits where the paint invites you to use real estate that is not actually “free.”
Turn 1
Type: Fast left. Downhill entry, uphill exit. Gear: 4th–5th. Passing: Yes—lap 1.
Technique: Slight lift or flat depending on car. The track drops then rises—commit to the line. Use full width on exit.
Line: Apex the left. Exit sets up the long Turn 2 carousel. Any scrub costs speed for the whole T2 sequence.
Common mistake: Lifting too much or running wide on exit. Turn 1 defines the run into T2.
Turn 2 (Carousel)
Type: Long uphill right. Gear: 3rd–4th. Passing: Rare.
Technique: Constant radius, sustained G. Progressive throttle as the corner opens. The carousel feels long—stay smooth. Late apex works well; use full track on exit.
Common mistake: Apexing too early and running wide. Rushing the throttle and losing the rear.
Turn 3
Type: Slow left. Slowest corner on the track. Gear: 2nd. Passing: Possible with overlap.
Braking: Heavy braking. Trail brake for rotation.
Line: Late apex. Exit leads to the T4–5 chicane. Smooth throttle application.
Turns 4–5 (Chicane / Museum)
Type: Right-left chicane. Gear: 2nd–3rd. Passing: Yes.
Technique: The iconic section—Turn 5 passes the Museum area. Brake in a straight line, trail brake into the first part. Smooth direction change. Hit both apexes; use full track on exit only where the surface stays legal for iRacing—wide, painted exits are a common track limits and slow-down trap.
Common mistake: Braking too late and overshooting. Missing the second apex kills exit speed onto the run to T6.
Turn 6
Type: Fast left. Gear: 4th–5th. Carry speed through; sets up the run toward the back straight.
Turns 7–8
Type: Sequence leading onto back straight. Gear: 3rd–4th. Passing: Possible at T8.
Line: Flow through; exit of T8 is critical for straight-line speed. Use full track on exit.
Turns 9–13
The middle sector winds through elevation changes. Turn 9 is a key reference (museum garage access nearby). Stay smooth through the sequence; avoid aggressive kerb use—Barber's kerbs can unsettle the car. The track narrows in places; hit your apexes. Turn 12 has the infield access underneath—no impact on the racing line.
Turns 14–17 (Final section)
Type: Challenging sequence before start-finish. Gear: 2nd–4th. Passing: Possible with overlap.
Technique: Heavy braking zones and direction changes. This section is technical—each corner sets up the next. Trail brake where needed. Clean exit from the final turn is critical for lap time onto the straight. Expect strict invalidations if you shortcut exits or run deep past the white line trying to defend.
Common mistake: Braking too late into the complex. Poor exit from the last corner kills straight-line speed.
Alternative Layouts
As of 2026, iRacing’s Barber listing is built around the single Full Course road layout (no separate short course or alternate GP/chicane configuration in the service like some other venues). If iRacing adds configurations later, treat each as its own braking and track-limits homework—the elevation and kerb personality will still be “Barber,” but corner speeds will not transfer 1:1.
Common Mistakes to Avoid
- Over-lifting in Turn 1: You pay for it all the way through the Turn 2 carousel.
- Early apex in Turn 2: Forces a tight, throttle-on exit where the car wants a long, balanced arc.
- Rushing Turn 3 entry: You gain nothing on the brakes and lose the line into the chicane.
- Chicane “stabs”: Snappy steering in Turns 4–5 upsets the platform and costs drive onto the climb toward Turn 6.
- Kerb abuse in 9–13: Barber’s kerbs look friendly; some will still spike tyre load and yaw the car into the next blind apex.
- Hero laps in 14–17: One late brake buys a tenth until it buys a spin, a slow-down, or a race-long flat spot.
Overtaking and Defending
Primary attack zones: Turn 1 on lap one and after full-course cautions—wide track, big speed differential, high risk. Turn 5 (Museum chicane) rewards a straight, committed outbrake; defend by placing the car centre-track late on the approach so the overlap is messy for the attacker. Turn 8 at the end of the back straight is draft-assisted but often needs an early commitment—back out if you are only “sort of” alongside. Turns 14–17 offer multiple brake points; the defender who covers inside early survives, the one who reacts at the last cone often overshoots or gives a cut-track penalty away.
Defensive philosophy: Barber is easier to lose time on than to gain—force rivals into technical sections where patience beats lunges. Avoid weaving on straights; use one decisive lane choice before braking zones.
Racecraft and Incident Avoidance
Lap 1, Turn 1: Treat it as survival unless you have a clear inside line and exit room. The field stacks into Turn 2—space disappears faster than grip. Mid-pack: The Museum chicane and final complex generate multi-car incidents from braking-distance mismatches; brake to the car ahead’s capability, not yours alone. Pit entry/exit: Confirm the exact blend points in a solo session for your series—stay off the racing line on entry, signal early, and merge on pit exit as if everyone else is flat through Turn 1.
Traffic Management Tips
Faster traffic: Call the pass early on the short straights; the blind entries to Turns 3, 9–11, and 14+ are poor places to “sort it out.” Lift slightly before the slowest corners so you do not brake surprise the car behind. Slower traffic: Be predictable—hold a steady line through the chicane rather than jerking toward a late defensive block. Use relative boxes and spotter audio; Barber’s elevation hides cars in mirrors longer than flat tracks.
Setup Advice
Aim for compliance over peak aero: stiff cars feel sharp for two laps, then punish kerbs and elevation changes. In fast transitions (Turn 1, Turn 6, parts of 9–13), balance aero so the rear does not snap when you combine trail brake and steering. Brake bias: slightly rearward can help rotation into Turn 3 and the chicane; if the rear locks on downhill entries, nudge bias forward a click at a time. Diff / rear roll stiffness: in the Turn 2 carousel you want progressive throttle—too aggressive a locking diff or too stiff a rear bar will light the rears on exit. ARB philosophy: small changes matter; Barber exposes imbalance every lap.
Tyre Management
The asphalt is smooth, so wear rates are moderate compared with abrasive circuits—but sustained lateral load in Turn 2 and constant direction changes keep heat in the tyres. Front-left and rear-right work hard through the carousel and linked rights/lefts; manage temperatures by smoothing steering and avoiding unnecessary slide in slow exits. In long runs, rears can fade first; short-shift on the back straight to protect drive if fuel saving, but do not give away so much time that you get stuck in traffic. Fuel: per-lap consumption is moderate; plan stints from your car’s telemetry once you know race pace.
Qualifying vs Race Pace
Qualifying: Commit to the last tenth everywhere—especially Turn 1 exit, chicane minimum speed, and the final complex—while staying inside track limits on the very edges of kerbs and exits. One invalid lap at Barber is easy; build two banker laps early. Race: Drop the final two percent of kerb risk, widen brake zones slightly, and prioritise exits that set up passes or defence into Turn 3, Turn 5, and Turn 8. Consistency and tyre state beat single-lap heroics after ten minutes in most splits.
Recommended gears
Typical GT3 reference (adjust for IndyCar, GT4, or slower cars):
| Section | Mazda | GT3 | LMP3 | LMP2 |
|---|---|---|---|---|
| Turn 1 | 4th–5th | 4th–5th | 4th–5th | 4th–5th |
| Turn 2 (Carousel) | 3rd–4th | 3rd–4th | 3rd–4th | 3rd–4th |
| Turn 3 | 2nd | 2nd | 2nd | 2nd |
| Turns 4–5 (Chicane) | 2nd–3rd | 2nd–3rd | 2nd–3rd | 2nd–3rd |
| Turn 6 | 4th–5th | 4th–5th | 4th–5th | 4th–5th |
| Turns 7–8 | 3rd–4th | 3rd–4th | 3rd–4th | 3rd–4th |
| Turns 9–13 | 2nd–4th | 2nd–4th | 2nd–4th | 2nd–4th |
| Turns 14–17 | 2nd–4th | 2nd–4th | 2nd–4th | 2nd–4th |
Final Tips
Biggest lap-time gain: linking Turn 1 exit through the entire Turn 2 arc without a mid-corner correction. Biggest race saver: refusing 50/50 lunges into the Museum chicane and the final complex—live to fight on the next short straight. Hardest section: the rolling blind entries in Turns 9–13 where you must trust markers. Best overtaking zone: Turn 5 braking with a draft from the run through Turn 6–8, plus Turn 1 on lap one when the field is still two-wide.
Next: Sonoma Sportscar Alt, Sebring, or Daytona Road.
